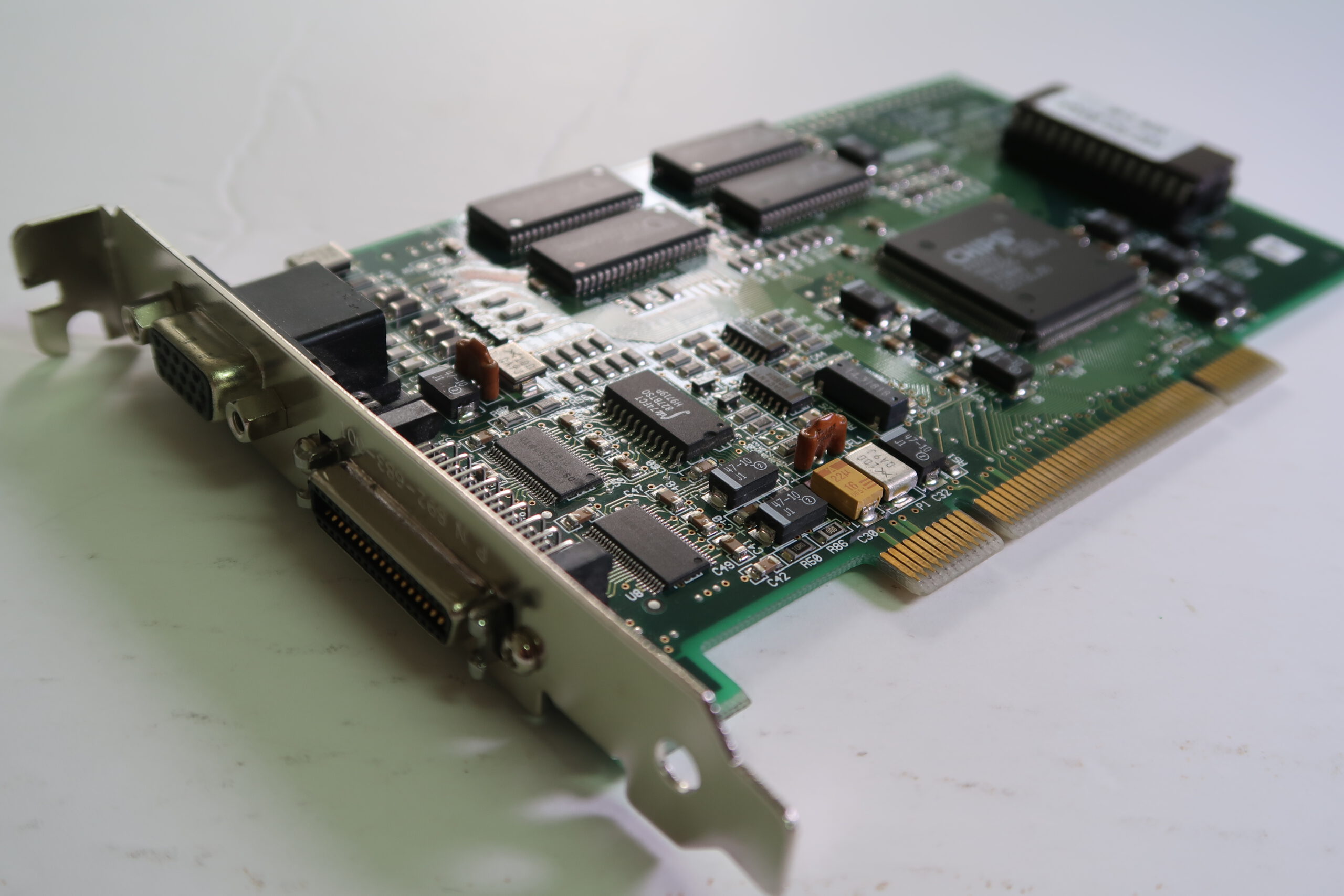

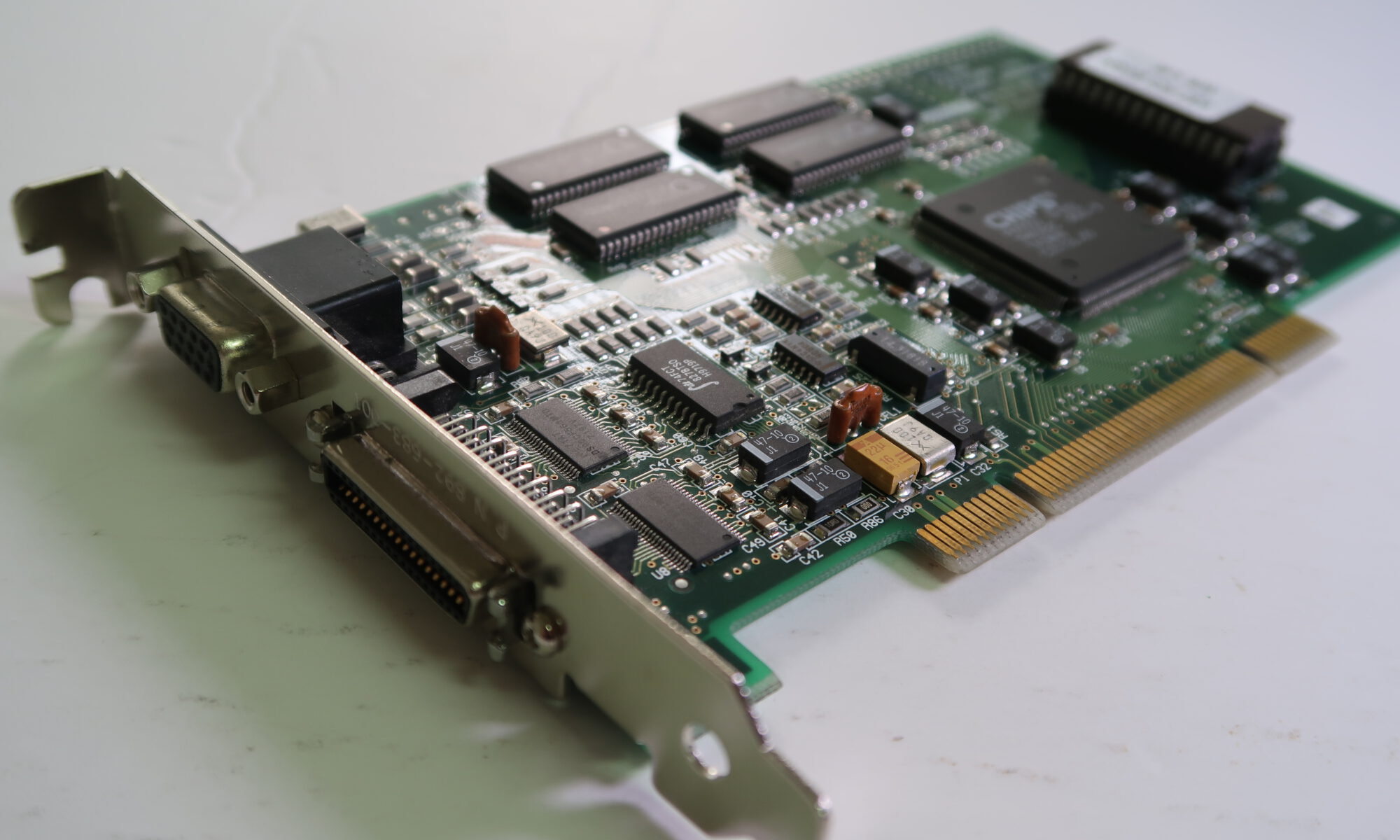

Keycorp K57 PCI Video Card for the K57 Series Flat Panel Monitors

Description

MODEL NO: K57 PCI (circa 1997)

P/N: 903-683-001

S/N: AO2354934

This is a rare, 32-bit PCI-bus video card designed and manufactured by Keycorp Ltd. of Australia for their K57 series of flat panel monitors from the late 1990s to the early 2000s.

FEATURES:

• Chips and Technologies 65550 video chip
• 2MB on-board memory (VRAM)
• Proprietary Keycorp K57 PCI SVGA ROM chip v. 2.40
• Proprietary video connector for compatible K57 series of flat panel monitors (see list below)
• One (1) SVGA (DB-15) connector  (for any other brand of monitor with an SVGA port)



COMPATIBLE  KEYCORP K57 MONITORS:

• Keycorp K57E-1221  (10.4″ with ergo arm; max resolution of 800 x 600)
• Keycorp K57H-1221  (10.4″,  height adjustable; max resolution of 800 x 600)
• Keycorp K57H-1223  (12.1″, height adjustable; max resolution of 800 x 600)
• Keycorp K57S-1236  (14.1″, swivel base, XGA ; includes a power pack to achieve max resolution of 1024 x 768)
• Keycorp K57T-1223  (12.1″, with touchscreen monitor)



PRICE: US$ 34.95

Shipping and handling: to U.S. mainland address: US$ 12.95 via USPS Ground Advantage; for all others, please send an email to kupitero@gmail.com for shipping costs
