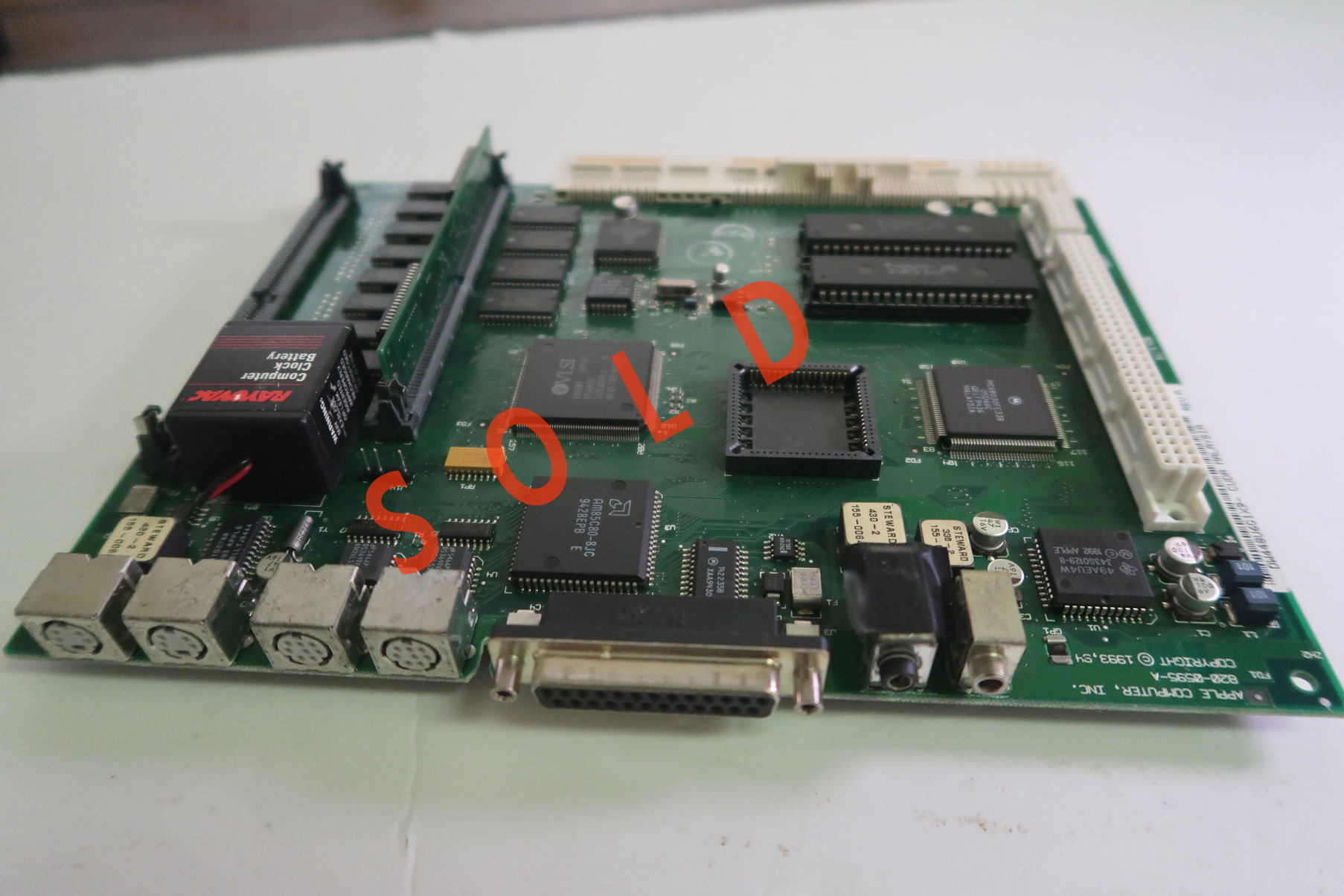

Apple Mac LC 550 / Performa 550 Main Logic Board

Description

MODEL NO: 820-0595-A (circa 1993)

S/N: DW448U6G1X9

The actual unit was made in Malaysia by Apple Computer, Inc.

FEATURES:

  • Motorola MC68030 (33 MHz) processor
  • Uses optional 68882 math co-processor (via a vacant math co-processor slot)
  • 1MB Macintosh ROM
  • 4MB RAM (built-in) and has one (1) RAM slot (up to 32MB) for a max capacity of 36MB RAM (uses 72-pin SIMMs)
  • Built-in 512K VRAM (Video RAM)
  • Mac LC PDS Expansion slot
  • 4.5V alkaline “cube” battery (replaceable)
  • Supported OS: System 7.1 to 7.5.1; 7.5.3 to 7.6.1

PORTS & CONNECTORS:

  • Two (2) ADB (Apple Desktop Bus) ports
  • One (1) SCSI port (DB-25)
  • Two (2) serial ports (standard)
  • Sound out (8-bit stereo)
  • Microphone jack (PlainTalk)

PRICE: US$ 49.95

Shipping and handling: to U.S. mainland address: US$ 15.95 via USPS Ground Advantage; for all others, please send an email to kupitero@gmail.com for shipping costs
